HeartSave myPAD
Your Personal Access Defibrillator
The HeartSave myPAD provides the safety you and your family deserve.
With pre-connected electrodes and an intuitive, self-explanatory user interface, the HeartSave myPAD ensures that even untrained users can act quickly and effectively in an emergency without losing valuable time.
Thanks to its sleek, user-friendly design, it seamlessly integrates into your daily life – giving you the reassuring feeling of being well-prepared.
Specifically designed for homecare, the HeartSave myPAD can be optionally equipped with a rechargeable battery that is continuously charged via a docking station. This eliminates the need for battery replacement, ensuring your AED is always ready for use.
Your Portable Access Defibrillator
Your HeartSave myPAD has been specifically optimized for mobile use, making it your reliable companion during all activities – whether for sports, travel, or everyday life.
With its compact size of just 15 x 15 cm and a weight of only 1.1 kg, the AED is easy to carry and quickly ready for use in an emergency. This ensures you have the confidence of being prepared anytime and anywhere – providing critical protection when every second counts.
Your HeartSave myPAD ensures you feel optimally protected – even when away from home.
Your Public Access Defibrillator
The HeartSave myPAD is the ideal solution for public spaces.
With a language selection button for up to six languages, the AED is simple and safe to use for users of various nationalities. Its IoT capability enables real-time monitoring and management of the device’s status at any time. The child mode button reduces the energy level to a safe setting for children with just a press, eliminating the need for special electrodes.
HeartSave myPAD – helping everyone to be a lifesaver!

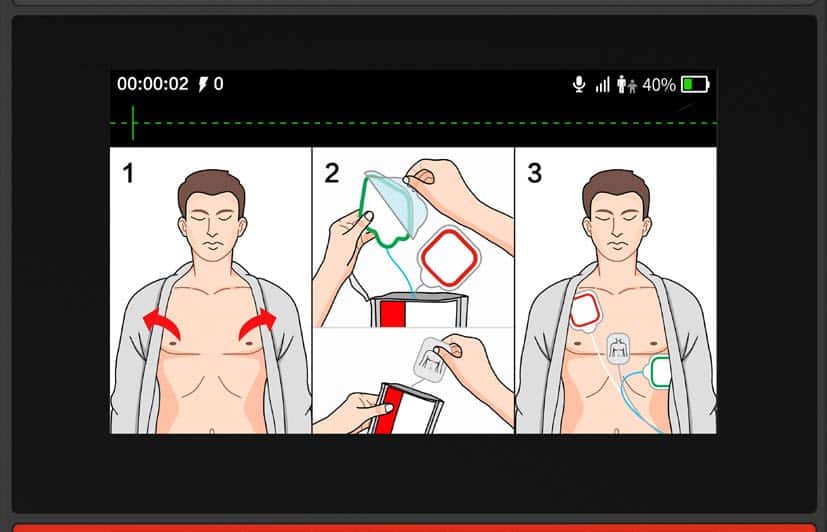

4,3" COLOR TOUCHSCREEN
The bright and sharp display of the HeartSave myPAD automatically adjusts to the surrounding light for optimal visibility. Key settings, such as selecting the mode (adult or child) or the language, can be made quickly and easily via the touchscreen.
Graphically animated instructions and relevant operational information, such as the patient’s ECG, number of shocks delivered, and battery status, provide essential support to first responders in any situation.
CPR-FEEDBACK SENSOR
Thanks to its intelligent algorithm and the preconnected electrodes the CPR-feedback system is activated immediately when used by the first aider.
Using advanced technology and state-of-the-art sensors, our system monitors all parameters of chest compressions in real time.
The first aider is optimally supported in their actions with easy-to understand voice instructions and graphics on the display that ensure that the first aider feels safe at all times during resuscitation.
REMOTE DEVICE MANAGEMENT
With myPRIMEDIC Control as a cloud-based all-in-one solution you can manage all your connected HeartSave AEDs.
It allows centralized monitoring and administration with automatic notifications for important events, ensuring your devices are always ready without the need for on-site checks.
Data is transmitted via WiFi or cellular network, utilizing the best available connection. Access is simple and convenient through the app or any browser, regardless of platform.

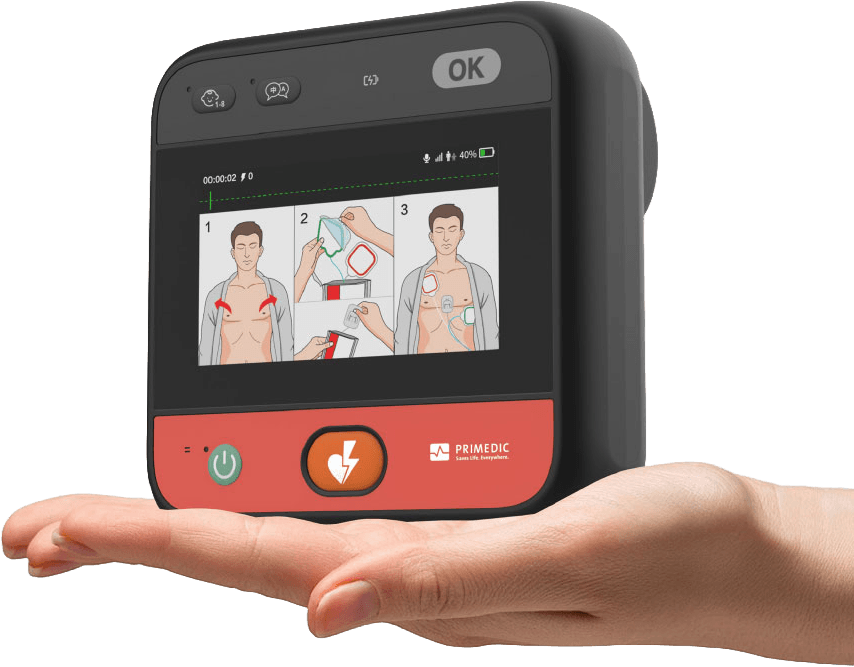

PORTABLE SIZE AND WEIGHT
At just 15 x 15 cm and 1.1 kg make it easy to take your HeartSave myPAD with you wherever you go and whenever you need it
4.3“ COLOR DISPLAY (LCD OR TOUCHSCREEN)
Displays graphically animated instructions, ECG, number of shocks, battery status and more to clearly guide first aiders in any situation
CHILD BUTTON
Enables pediatric defibrillation with adjusted energy levels, even without special pediatric electrodes
5 YEARS BATTERY & ELECTRODES SHELF LIFE
for sustainability and minimized follow-up costs, optional 12-years rechargeable battery
IOT (LTE & WIFI)
Allows remote device management and instant push notifications
CPR-FEEDBACK
With audio-visual instructions to support first-aiders during CPR and to help optimizing quality of the chest compressions
INTUITIVE USER GUIDANCE
of the AED, which can automatically adapt to the user‘s working speed to support the optimization of the CPR procedure
MULTILINGUALISM
With up to 6 languages to support first-aiders from different nationalities
in public areas
WIRELESS CONFIGURATION
Via bluetooth for quick and easy customization to the needs of the user
8 YEARS WARRANTY
Ensures long-term reliability
Smart Connectivity
After each self-test, the AED’s current readiness status is transmitted to myPRIMEDIC Control via LTE or WiFi, and if any issues are detected you receive an instant push notification. This significantly reduces the need for frequent onsite inspections of the AED.
myPRIMEDIC Control Cloud
myPRIMEDIC Control operates on a cloud-based platform, providing you with worldwide access to data from all your AEDs anytime, anywhere. Naturally, it is fully GDPR-compliant, with servers located in Germany.
Remote Management
Whether from your PC, your tablet, or smartphone, myPRIMEDIC Control lets you manage connected HeartSave AEDs completely platform-independently. Even configuration changes, software updates, and the installation of new guidelines can be conveniently done online and remotely.
"Your AED is ready for use."
This notification gives you a reassuring sense of security?
Excellent—that’s precisely the purpose of myPRIMEDIC Control notifications.
They keep you constantly informed about all events concerning your AEDs.
Are the electrodes or battery nearing their expiration date?
myPRIMEDIC Control sends you an advance reminder to replace them.
Did one of your AEDs detect an issue during its daily self-test?
myPRIMEDIC Control immediately alerts you, enabling you to take action as soon as possible.
Was an AED used in an emergency?
myPRIMEDIC Control notifies you promptly after the incident, so you can ensure your AED is ready for the next use without delay.
myPRIMEDIC Control notifications are proactive and fully automated. You decide when, how often, and to what extent you’d like to receive updates—whether on your PC, tablet, or smartphone.

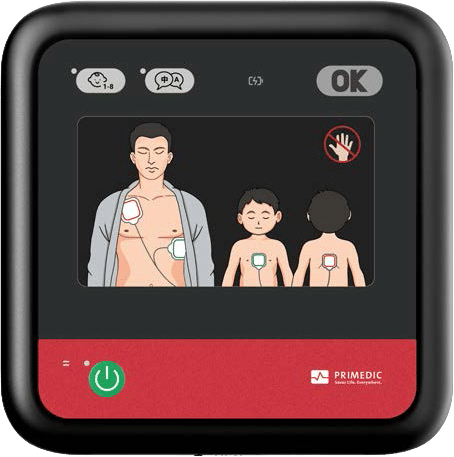

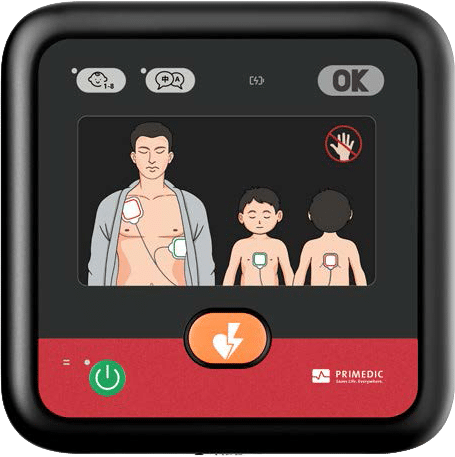

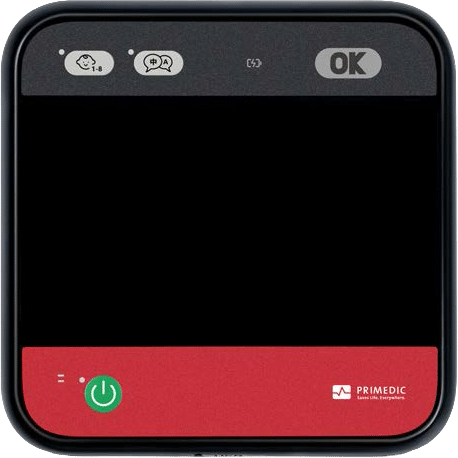

Fully automatic operation, without display

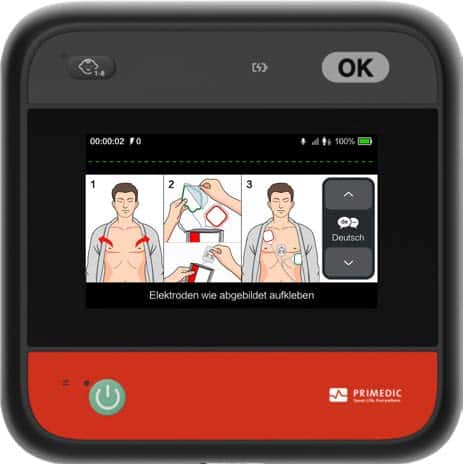

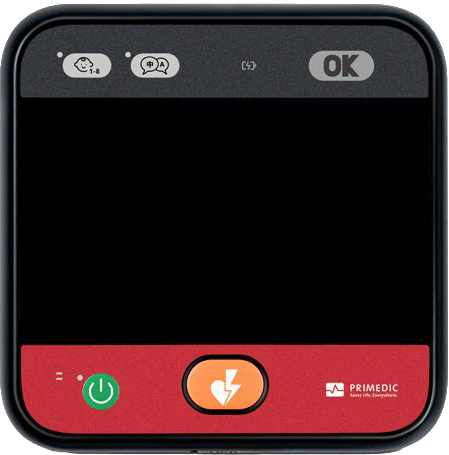

Semi-automatic operation, without display

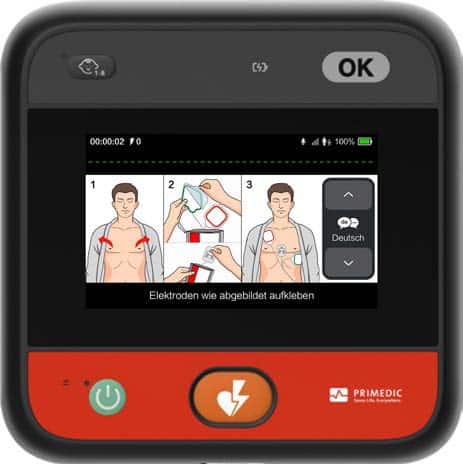

Fully automatic operation, 4.3" LCD color display
Semi-automatic operation, 4.3" LCD color display
Fully automatic operation, 4.3" color touchscreen
Semi-automatic operation, 4.3" color touschscreen
Technical data
- Semi-automated operation - shock delivery at the touch of a button by the first aider
- Fully-automated operation - shock delivery by the AED for reliable defibrillation even for unsafe users
- Shelf life battery: up to 5 years
- Shelf life electrodes: up to 5 years
- Child mode at the touch of a button - no special pediatric electrodes are required in case of emergency
- optionally in up to six languages, selection from numerous languages / language packages possible
- automatic daily self-tests with status display for function, battery, electrodes
- metronome for correct pressure frequency during cardiac massage to support the user
- Automatically escalating defibrillation energy levels (adults: 150J | 170J | 200J, children: 50 J | 50 J | 50 J)
- Internal storage of operational data, export via USB
- 4.3“ LCD color display or touchscreen (optional)
- IoT (LTE & Wifi) for remote device management (optional)
- CPR feedback sensor (optional)
- 12 years rechargeable battery (optional)
- dust- and surge-proof (IP 66)
- size approx 150 x 150 x 74 mm
- weight only approx. 1,1 kg
- 8 years warranty ex works
